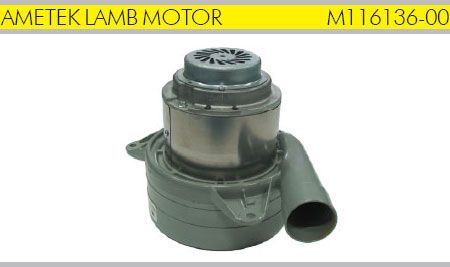

Ametek Lamb Vac Motor BP-T 3 Stage (116136-00) 240V/1450W 7.2in
VP30327
Description
Lamb® brushed motors have been the workhorse of commercial floorcare, central vacuum and car wash industries, delivering power, life and reliability for decades. The motors are lighter, more powerful and quieter than other competitive products on the market today.
Features
- Two-stage
- 240 volts
- 5.7"/145 mm diameter
- Double ball bearings
- Single speed
- Thru-flow discharge
- Aluminum fan end bracket
- Aluminium commutator bracket
Design Application
- Suitable for 240 volt AC operation, 50/60 Hz - UL Recognized, category PGRY2 (E47185)
- Skeleton-frame design
- Provision for grounding
- The Lamb Electric vacuum motor line offers a wide range of performance levels to meet design needs
Special Features
- Equipment operating in environments not requiring separation of working air from motor ventilating air
- Designed to handle clean, dry, filtered air only.
Product Attributes
| Product Type | Specification |
|---|---|
| Frame Size | 7.2 |
| Volt | 240 |
| AC/DC | AC |
| Fan Stages | 3 |
| Output | Tangential |
| Replacement Brush Kit | 833415-55 |
| Motor Type | 7.2-OldStyle |
| Speed Control | None |
| Flow Class | High Performance |
| Power Level | 1450 Watt |
| Comments | Standard, None, None |
| Alt Parts # | N/A |
Type: Bypass Tangentile, 3 STAGE, 240V 1630 WATTS. Dimensions : (H) 194mm x (W) 183mm
| Name | Size | |
|---|---|---|
| Ametek Lamb Vac Motor (116136-00) | 79 KB |
