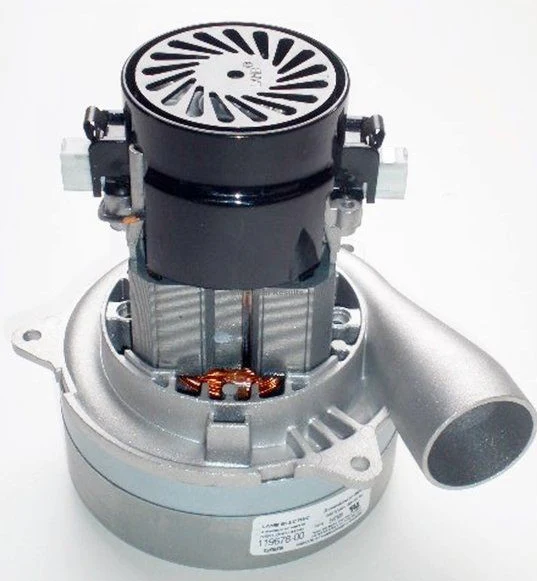

Ametek Lamb Vac Motor BP-T 2 Stage (119678-00) 240V/1709W 5.7in

Experience superior cleaning performance with the AMETEK MOTOR BP-T 2 STAGE 1300W. This bypass tangentile motor delivers exceptional suction power and efficient operation, making it the perfect choice for your cleaning needs.

Description

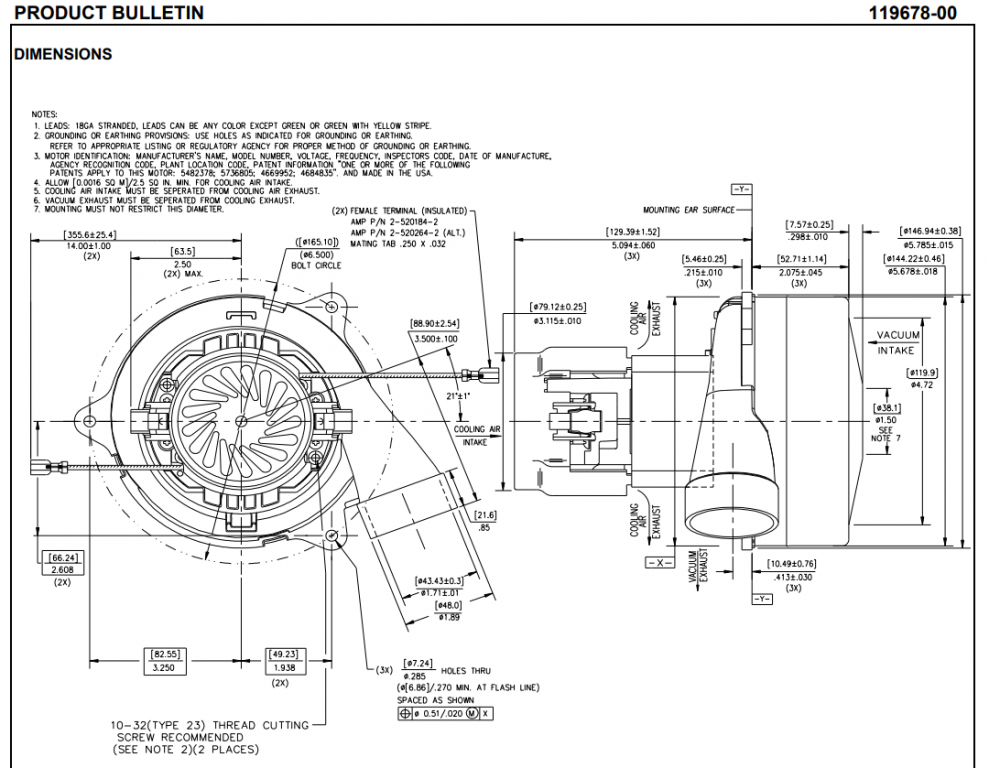

Type: Bypass Tangential, 2 STAGE, 240V 1709 WATTS. Dimensions : (H) 181mm x (W) 145mm

-Two Stage
-240 Volts
-5.7" / 145mm diameter
-Dual ball bearings
-Single speed
-Tangential bypass discharge
-Aluminum fan end bracket
-Aluminum commutator bracket

DESIGN APPLICATION
- Equipment operating in environments requiring separation of working air from motor ventilating air
- Designed to handle clean, dry, filtered air only

SPECIAL FEATURES
- Suitable for 240 volt AC operation, 50/60 Hz
- UL recognized, category PRGY2 (E47185)
- Provision for grounding - Skeleton frame design
- Tapered fan system
- The Lamb vacuum motor line offers a wide range of performance levels to meet design needs
